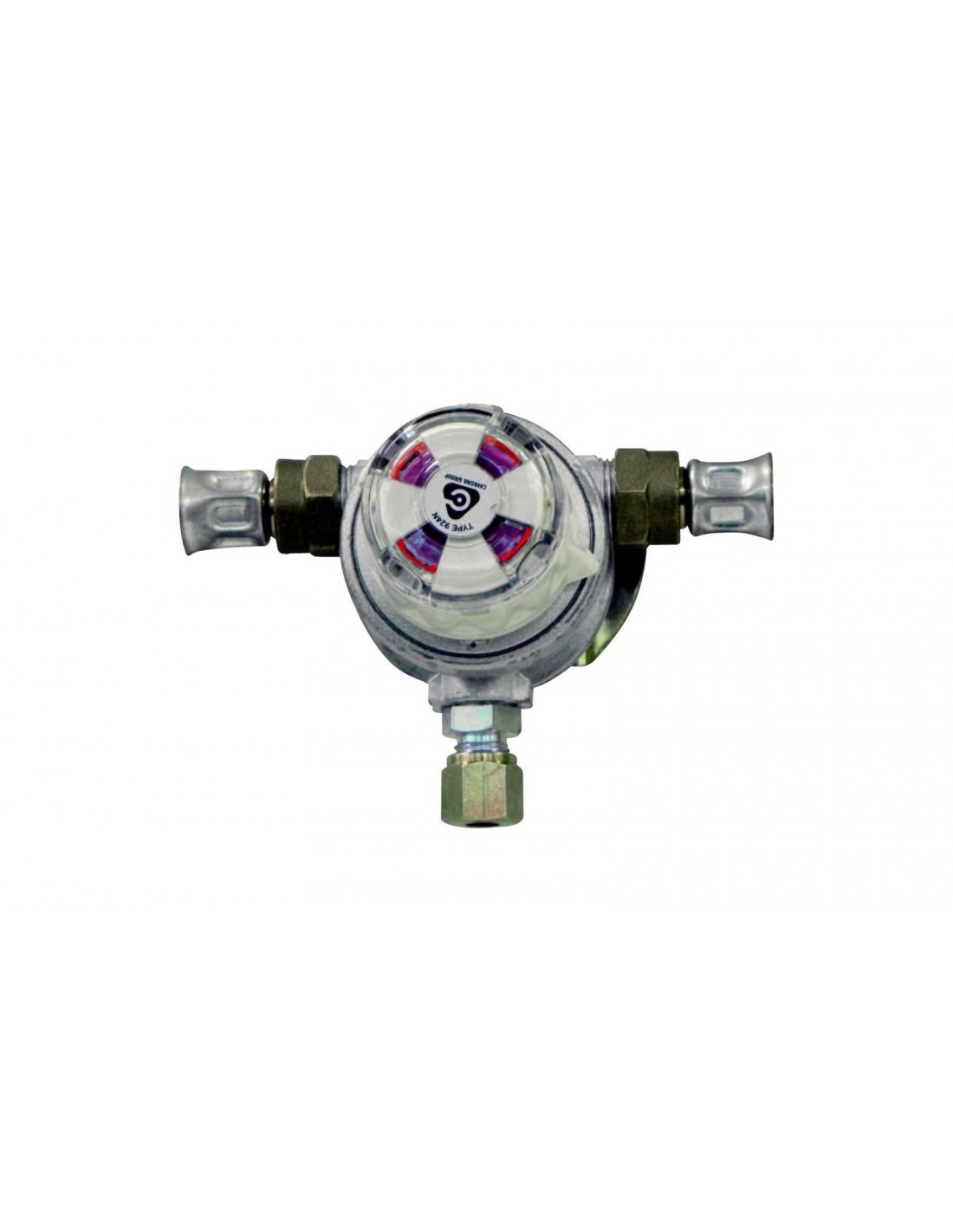

The automatic 2-bottle Multimatic switching system with integrated gas pressure regulator and excess pressure relief technology when stationary. Thanks to its compact design, installation only requires an area of 6 x 8 cm. The base plate for wall mounting is part of the scope of delivery and comes already pre-installed from the factory. The two high-pressure connecting hoses, 45 cm long, are both included in the scope of delivery and allow universal connection to 3, 5, 11 and 33 kg gas cylinders.
PRODUCT DESCRIPTION
The automatic 2-bottle Multimatic switching system with integrated gas pressure regulator and excess pressure relief technology when stationary. Thanks to its compact design, installation only requires an area of 6 x 8 cm. The base plate for wall mounting is part of the scope of delivery and comes already pre-installed from the factory. The two high-pressure connecting hoses, 45 cm long, are both included in the scope of delivery and allow universal connection to 3, 5, 11 and 33 kg gas cylinders.
1. Constant consumption pressure is produced at 2 control levels, ensuring maximum throughput volumes even in extreme operating conditions, e.g. in winter.
2. All the important functions - such as 2-level pressure regulation, automatic switching, safety release device - are integrated in just one component, which makes installation much more straightforward and less prone to error.
3. This switching system guarantees that 2 cylinders will never both be empty because when there is a manual switchover the reserve cylinder is always repurposed as the operational cylinder, which means that only one cylinder stays in operation until it is completely empty.

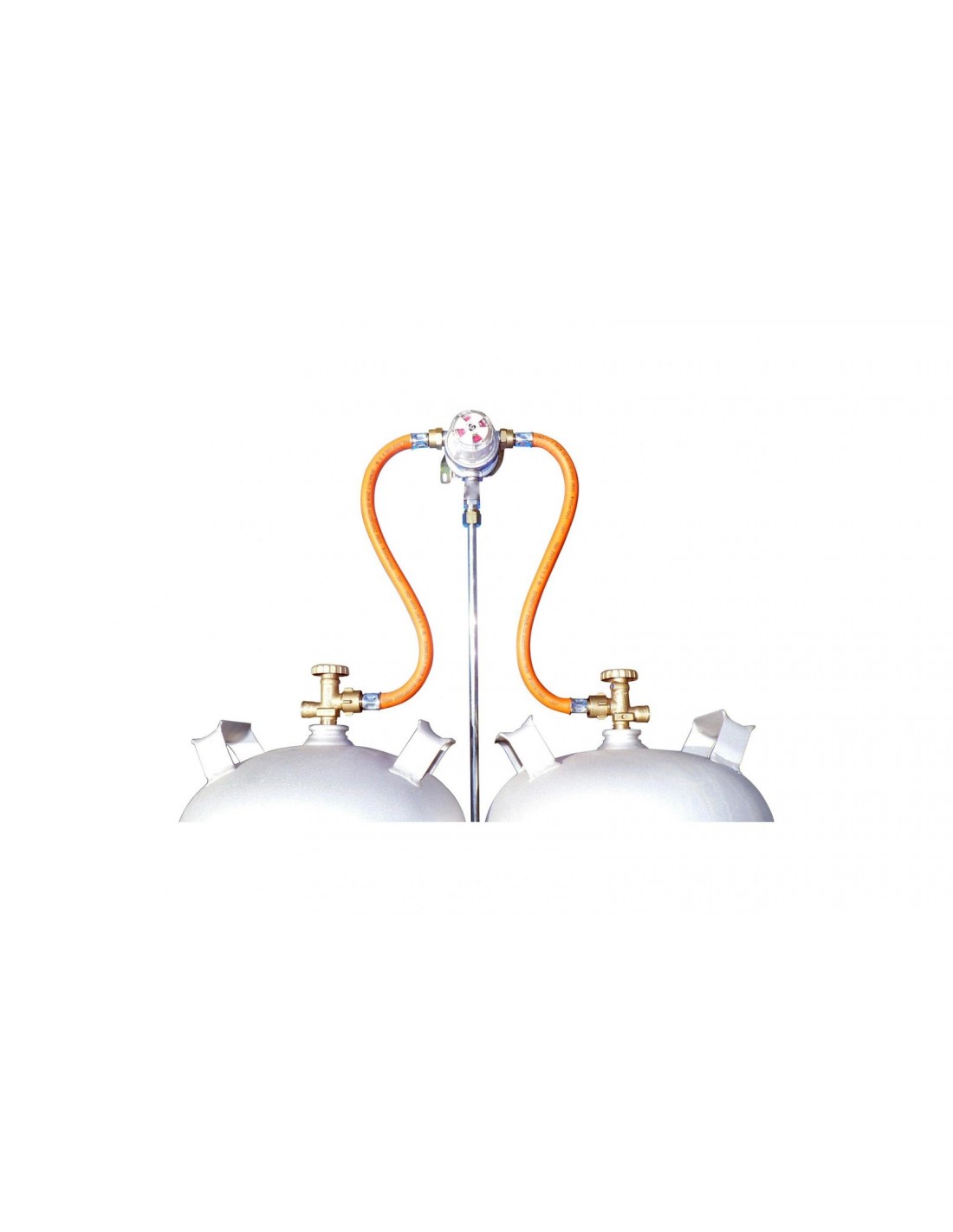

The photo depicts a clean, complete installation example.
Scope of delivery as described above, without shut-off valve and pipe connections!
For gas-safety reasons, we recommend this system is only installed by a qualified gas technician!
